Fashion Drawing Template

I am sick of fashion drawing templates not being to-scale.

I hate the idea of designing on a “perfect,” unrealistic model, because when you start to make the actual garment, none of the proportions are correct and it all looks off. I view this as bad design etiquette.

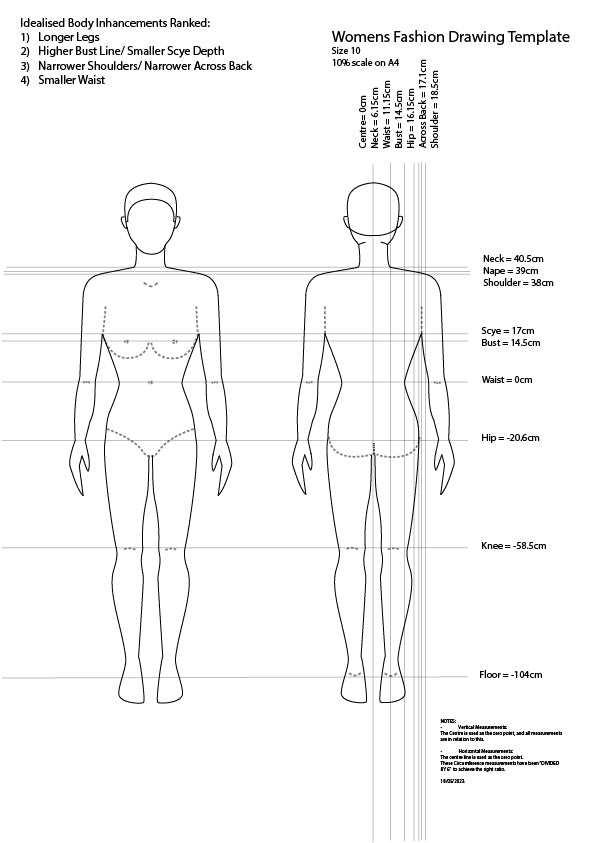

To solve this problem, I have made scale template (10%) of the Women's Size 10 measurements, as used by Whitecliffe College. I then compared my to-scale template, to the “perfect figure” templates. There was a noticeable difference between the two.



These differences are now used inform my design language.

"Starting with a realistic figure as a base, cutting it up so it alters the silhouette, revealing more desirable attributes."



Idealized Body Enhancements:

  • Longer Legs
  • Higher Bust Line/ Smaller Scye Depth
  • Narrower Shoulders/ Narrower Across Back
  • Smaller Waist

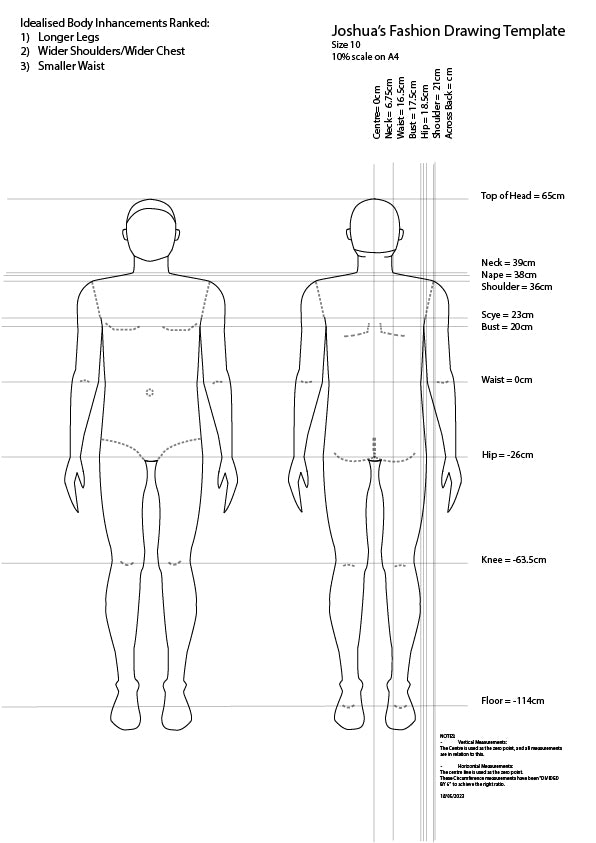

I also repeated the same process for my own measurements against an idealized male figure.

Idealized Body Enhancements:

  • Longer Legs
  • Wider Shoulders/Wider Chest
  • Smaller Waist



TO NOTE:

Vertical Measurements: The Centre is used as the zero point, and all measurements are in relation to this.

Horizontal Measurements: The centre line is used as the zero point. These Circumference measurements have been DIVIDED BY 6 to achieve the right ratio for a flat drawing.
